Keycloak realm export and import

Export existing realm

  • Go to the Keycloak admin web page: https://iam.{{ platform_domain_name }}/admin

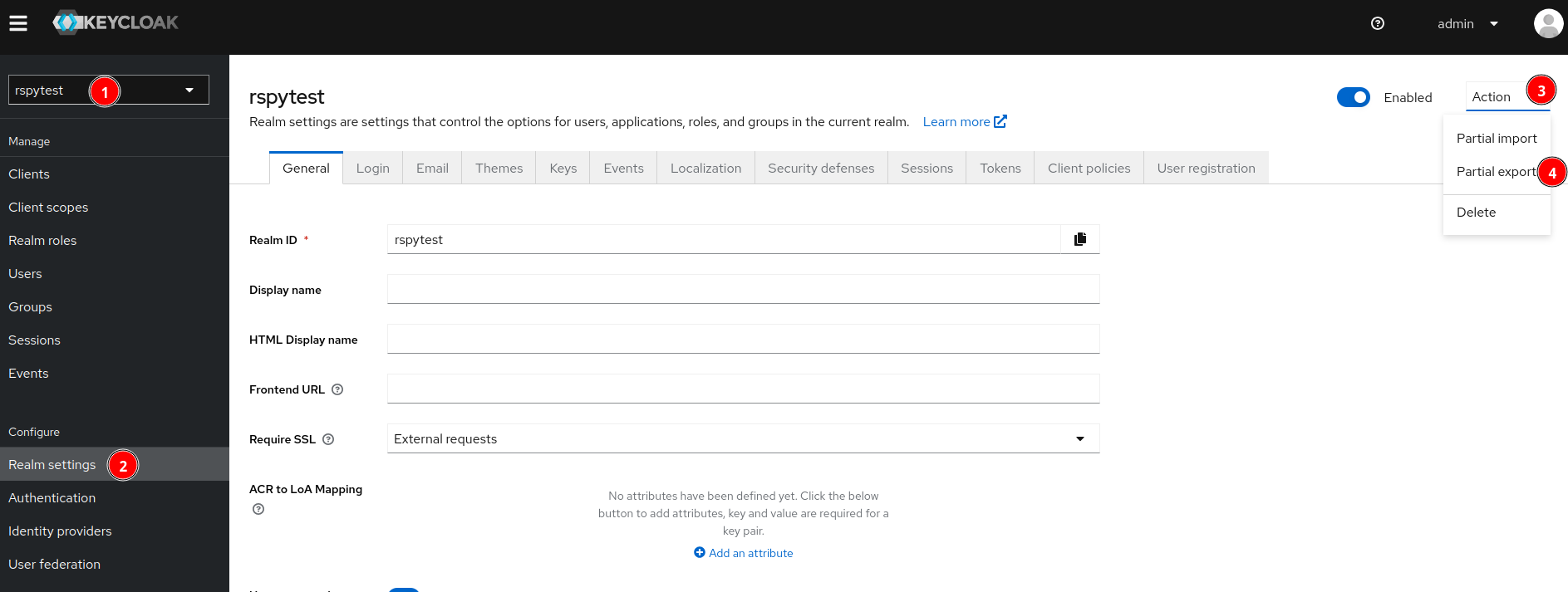

  • Export the realm: 1. Select the realm 2. Click on Realm settings 3. Click on Action 4. Click on Partial export Keycloak export part 1

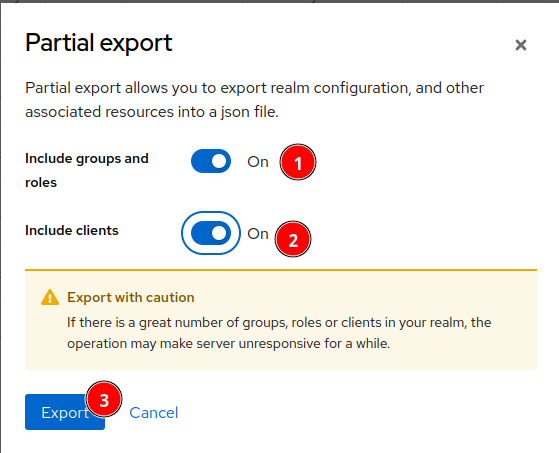

  • On the new pop-up 1. Turn "On" for the two options "Include groups and roles" and "Include clients" Keycloak export part 2
  • Convert the downloaded file from JSON to YAML
  • Create the KeycloakRealmImport file (you can find an e.g. in the keycloak application):

yaml apiVersion: k8s.keycloak.org/v2alpha1 kind: KeycloakRealmImport metadata: name: rspytest namespace: iam spec: keycloakCRName: keycloak realm: <YAML FROM PREVIOUS STEP>

sed -E 's#[[:space:]]{7}- id: [0-9a-f]{8}-[0-9a-f]{4}-[0-9a-f]{4}-[0-9a-f]{4}-[0-9a-f]{12}#       -#g' -i <YOUR_REALM_YAML_FILE.yaml>

sed ':a;N;$!ba;s/-\n         /-/g' -i <YOUR_REALM_YAML_FILE.yaml>

sed -E 's#[[:space:]]{6}- id: [0-9a-f]{8}-[0-9a-f]{4}-[0-9a-f]{4}-[0-9a-f]{4}-[0-9a-f]{12}#      -#g' -i <YOUR_REALM_YAML_FILE.yaml>

sed ':a;N;$!ba;s/-\n        /- /g' -i <YOUR_REALM_YAML_FILE.yaml>

sed -E 's#[[:space:]]{4}- id: [0-9a-f]{8}-[0-9a-f]{4}-[0-9a-f]{4}-0-9a-f]{4}-[0-9a-f]{12}#    -#g' -i <YOUR_REALM_YAML_FILE.yaml>

sed ':a;N;$!ba;s/-\n      /- /g' -i <YOUR_REALM_YAML_FILE.yaml>
  • For the clients using SAML like Wazuh (clientId: wazuh-saml), you need to remove the 3 following lines if they exist in the attributes section (saml.signing.certificate, saml.artifact.binding.identifier and saml.signing.private.key):
"attributes": {
  [...]
  "saml.signing.certificate": "MIICozCCAYsCBgGRIakcRjANBgkqhkiG9w0BAQsFADAVMRMwEQYDVQQDDAp3YXp1aC1zYW1s...",
  "saml.artifact.binding.identifier": "dGRFU+BI7ptxxxxxxxxRV+rz21BA=",
  [...]
  "saml.signing.private.key": "MIIEogIBAAKCAQEAns1/aK2sVrttIhr5LdPVyBV3pxdXQq4DcSZGSnaoJd7JXlPVUWy8gmgM...",
 [...]
}
  • For the clients using SAML like Wazuh (clientId: wazuh-saml), you need to set saml.client.signature and saml.server.signature to true in the attributes section
  • Replace all references of your platform domain name example.com to {{ platform_domain_name }}

Import a KeycloakRealmImport file

Warning: after a successful import of a realm, the Keycloak pod restarts and a short downtime (around 1 minute) is observed.

Use kubectl to import the KeycloakRealmImport file:

kubectl -n iam apply -f <YOUR_REALM_YAML_FILE.yaml>

Note: you can follow the import process by watching the logs of the newly created pod:

kubectl -n iam logs <YOUR REALM NAME>-<random suffix> --follow

E.g. :

kubectl -n iam logs rspytest-gp7zv --follow

Changes detected in configuration. Updating the server image.
Updating the configuration and installing your custom providers, if any. Please wait.
2024-09-04 08:08:33,077 INFO  [io.quarkus.deployment.QuarkusAugmentor] (main) Quarkus augmentation completed in 13853ms
Server configuration updated and persisted. Run the following command to review the configuration:

        kc.sh show-config

Next time you run the server, just run:

        kc.sh build --optimized

The following run time non-cli properties were found, but will be ignored during build time: kc.db-url-host, kc.db-username, kc.db-password, kc.hostname, kc.hostname-admin-url, kc.http-enabled, kc.http-port, kc.https-port, kc.proxy, kc.log-level
Updating the configuration and installing your custom providers, if any. Please wait.
2024-09-04 08:08:43,587 INFO  [io.quarkus.deployment.QuarkusAugmentor] (main) Quarkus augmentation completed in 8257ms
Server configuration updated and persisted. Run the following command to review the configuration:

        kc.sh show-config

The following build time non-cli properties were found, but will be ignored during run time: kc.db
2024-09-04 08:08:45,222 INFO  [org.keycloak.quarkus.runtime.hostname.DefaultHostnameProvider] (main) Hostname settings: Base URL: <unset>, Hostname: iam.example.com, Strict HTTPS: false, Path: <request>, Strict BackChannel: false, Admin URL: https://iam.example.com, Admin: iam.example.com, Port: -1, Proxied: true
2024-09-04 08:08:47,229 WARN  [io.quarkus.agroal.runtime.DataSources] (main) Datasource <default> enables XA but transaction recovery is not enabled. Please enable transaction recovery by setting quarkus.transaction-manager.enable-recovery=true, otherwise data may be lost if the application is terminated abruptly
2024-09-04 08:08:47,686 WARN  [org.infinispan.PERSISTENCE] (keycloak-cache-init) ISPN000554: jboss-marshalling is deprecated and planned for removal
2024-09-04 08:08:47,729 WARN  [org.infinispan.CONFIG] (keycloak-cache-init) ISPN000569: Unable to persist Infinispan internal caches as no global state enabled
2024-09-04 08:08:47,828 INFO  [org.infinispan.CONTAINER] (keycloak-cache-init) ISPN000556: Starting user marshaller 'org.infinispan.jboss.marshalling.core.JBossUserMarshaller'
2024-09-04 08:08:48,818 INFO  [org.keycloak.broker.provider.AbstractIdentityProviderMapper] (main) Registering class org.keycloak.broker.provider.mappersync.ConfigSyncEventListener
2024-09-04 08:08:49,380 INFO  [org.keycloak.connections.infinispan.DefaultInfinispanConnectionProviderFactory] (main) Node name: node_754822, Site name: null
2024-09-04 08:08:50,255 INFO  [org.keycloak.exportimport.singlefile.SingleFileImportProvider] (main) Full importing from file /mnt/realm-import/rspytest-realm.json
2024-09-04 08:08:56,052 INFO  [org.keycloak.exportimport.util.ImportUtils] (main) Realm 'rspytest' imported
2024-09-04 08:08:56,184 INFO  [io.quarkus] (main) Keycloak 23.0.6 on JVM (powered by Quarkus 3.2.10.Final) started in 12.339s. Listening on:
2024-09-04 08:08:56,184 INFO  [io.quarkus] (main) Profile import_export activated.
2024-09-04 08:08:56,184 INFO  [io.quarkus] (main) Installed features: [agroal, cdi, hibernate-orm, jdbc-h2, jdbc-mariadb, jdbc-mssql, jdbc-mysql, jdbc-oracle, jdbc-postgresql, keycloak, logging-gelf, micrometer, narayana-jta, reactive-routes, resteasy-reactive, resteasy-reactive-jackson, smallrye-context-propagation, smallrye-health, vertx]
2024-09-04 08:08:56,240 INFO  [io.quarkus] (main) Keycloak stopped in 0.052s
